[Review] HP ProLiant ML10 v2 – Home Lab Server

HPML10v2Front

This is a quick review on the HP ProLiant ML10 v2 server. I have been seeing lots of cashback deals lately with the HP Microserver Gen8 and HP ProLiant ML10 v2. I took this as an opportunity to grab one of each and was excited to get my hands on the HP ProLiant ML10 v2, having owned both a HP ProLiant ML115 G5 and a HP ProLiant ML110 G6, both of which still have some uses.

The HP ProLiant ML10 v2 can be had for around £110 when on offer and makes a good server for a home lab environment. I am currently using mine as a ESXi 6 host along side the ML110 G6, getting to grips with vSphere 6 ready for the VCP6-DCV exam. The best place I find for keeping an eye on deals is HotUKDeals (based in the UK).

The specs:

Processor: Intel Pentium G3240 Dual-Core 3.10GHz
Memory: 4GB DDR3 UDIMM – can be upgraded to 32GB
Drives/Controller: 4 x Non-Hot Plug 3.5in Dynamic Smart Array B120i
Power Supply:  350W

QuickSpecs: http://www8.hp.com/h20195/v2/GetPDF.aspx/c04123183.pdf

Processor

The entry level HP ML10 v2 comes with the Intel Pentium G3240 Dual-Core, which is more than capable for a small lab setup. However if you’re looking at running CPU intense programs it might be worth opting for the quad core Xeon version.

The processor supports the following virtulisation technologies:

Intel Virtualization Technology:  VT-x
No Hyper-Threading Technology

I have attached below a comparison of the ML10 v2 (Intel Pentium G3240) and the Microserver G8 (Intel Celeron G1610T) from cpubenchmark.net. As can be seen, the ML10 v2 comes out on top by a fair bit compared to the Microserver G8 and is more bang for your buck.

HPML10CPUScore

(https://www.cpubenchmark.net/compare.php?cmp%5B%5D=2250&cmp%5B%5D=2075)

The ML10 v2 does come with other processsors, most notably the Xeon quad core – the different models can be found here.

Memory

The good news here is that the ML10 v2 supports up to 32GB of DDR3 UDIMM memory and has four memory slots, meaning you can have 4 x 8GB memory modules installed. This is especially useful as  vCenter 6 requires at least 8GB of memory to run (assuming you are going down the VMware route).

For memory, I have purchased “Kingston KVR1333D3E9S/8G RAM 8 GB 1333 MHz DDR3 ECC CL9 DIMM, 240-Pin” from Amazon for around £43 and have had no issues.



HP ProLiant ML10 v2 / Inside

Storage

The MLv2 comes with four internal non-hot plug drives located at the front, that will make it easy to install drives when required. The server does come with a B120i Dynamic Smart Array which will allow Raid 0/1/10 configurations, slots 0/1 support 6 Gb/s and slots 2/3 support 3 GB/s. No hard drives are included in the server due to the extremely low price point.

There are an additional two SATA ports on the motherboard, if you wish to add some extra hard drives into the top bay or install a optical drive (not included).

HP ProLiant ML10 v2 / Front 2

Network & ILO management

Two 1Gb network interfaces can be found at the rear, this will be especially useful for virtualisation and no need to purchase a NIC for that additional port.

ILO management is shared with one of the 1Gb NICs that uses the ILO 4 chip, this will enable basic features such as rebooting the server. For more advanced features such as remote control and mounting media, an ILO pack will need to be purchased.

USB 3 Ports

The first thing I noticed when trying to install a USB stick inside the case… there was no USB port on the motherboard. This was surprising as the ML110 G6 and the Microservers have a USB slot included on the board. Four USB slots are included, two at the front and two at the back.

HP ProLiant ML10 v2 / Back

Power consumption

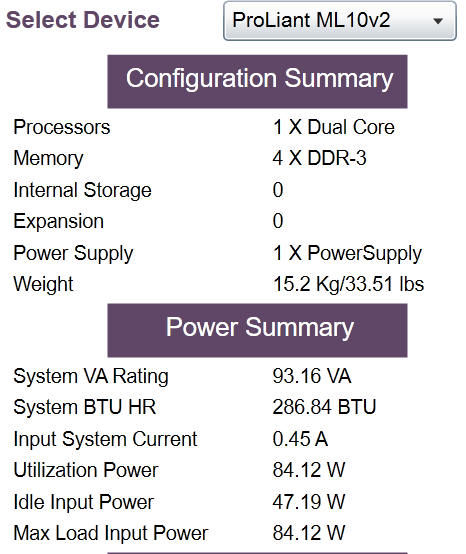

I have nothing currently to measure the exact figure on the power consumption, however using the HP Power Advisor tool from: https://paonline56.itcs.hpe.com/ (I had to use Internet Explorer to get this to work with Silverlight) and based on my setup of 32GB memory and no hard drives (using a Microserver for storage) the figures are:

HPML10v2PowerConsumption.

Idle: 47.19w

Max Load: 84.12

For me based in the UK on my current electricity tariff (9.55p/KWh) that’s around:

Idle: £0.108159

Max Load: £0.192803

a day to run (calculation used from this site: http://www.rapidtables.com/calc/electric/electricity-calculator.htm)

Verdict

I found this to be a good cheap home lab server, it’s around £10 more than the Microserver G8 (when both are on offer) and offers a better processor as well has allowing you to have up to 32GB of memory. The Microserver G8 does have the small factor size going for it and does consume less power compared to the ML10 v2. If size and power is not an issue I would recommend spending the extra and grabbing the HP ML10 v2.

The ILO management alongside with a purchased license gives the benefit of using an ISO to install an OS without the need for an optical drive (as one is not included) as well as remote control and the ability to use an app on your tablet/phone to control the server (with either a VPN or ports opened on…). Dell do a similar server in the PowerEdge T20 which is of a similar price but lacks the management facility (DRAC, at least not officially supported), this is my main reason for choosing the ML10 v2 over the PowerEdge T20.

The only negative I have is the lack of USB slot on the motherboard, I like to have that hidden away, no biggie though.

  • John Bannon

    Good write up. Any idea how to get alerts on this model ?

    • Hi John,

      This entirely depends on what alerts you are after and what OS you are running.

      If you have an advanced iLO license, you can configure email alerts via the iLO configuration page.

      Otherwise, you can setup the HPE System Management tools (if using Windows).

      Hope that helps.
      Chris
